CompCooler Motorcycle Riders Chiller Cooling System 200W DC 12-16V Vehicle Power Operated

Motorcycle Rider Liquid Chiller System

Compcooler Motorcycle Rider Liquid Chiller System (MLCS) was designed for the body cooling of riders. MLCS uses 12V DC rotary compressor refrigeration system to cool the liquid, pump circulates the cold liquid to cooling vest, then flow back to reservoir after heat exchanged. MLCS delivers 400W cooling capacity, power by DC12V vehicle power or rechargeable battery. temp control -5C to 30C (23F to 86F), accuracy +/-1C (2F), once circulation liquid reaches to set point temperature, system intellectually control the cooling capacity to that temperature. User may pre-cool the unit and get the coldest liquid as he needs, iceless cooling unit, maintain free.

Features:

• Compcooler Motorcycle Rider Liquid Chiller System (MLCS) was designed for the body cooling of riders.
• MLCS uses 12V DC rotary compressor refrigeration system to cool the liquid, pump circulates the cold liquid to cooling vest, then flow back to reservoir after heat exchanged.
• MLCS delivers 400W cooling capacity, power by DC12V vehicle power or rechargeable battery.
• Coolant (Anti-freeze liquid): Yes
• User may pre-cool the unit and get the coldest liquid as he needs, iceless cooling unit, maintain free.

Specifications:

• Cooling Capacity (Ambient Temp. 40C): W 200
• Cooling Capacity (Ambient Temp. 104F): Btu 682
• Max Cooling Capacity: W 300
• Power Supply: Rated Voltage V - 12, Operation Voltage Range - 12-16V
• Operation Current: A 12
• Max Current: A 15
• Max Power Consumption: W 200
• Refrigerant (Type): R134a
• Temp Control: -5 to 30 C, 23-86 F
• Coolant (Anti-freeze liquid): Yes
• Rotary Compressor (Samsung): Qty - 1PC, Voltage - 12V DC, Discharge - 1.9CC, Speed - 2000-6500RPM
• Fan: Qty - 2PC, Voltage - 12V DC, Air Flow - 30CFM
• Pump: Voltage - 12V DC, Water flow - 1L/Min, Lift - 2M
• Power Connector (Type): EC5 DC
• Operation Ambient (Max): -10 to 60C
• Storage Temp: -20 to 70C
• Noise (Max): 58dBA
• Color: White or Black
• Dimension (L x W x H): 220x180x100mm, 8.6x7.1x3.9Inch
• Weight: 4KGS, 8.8LBS

Component List:

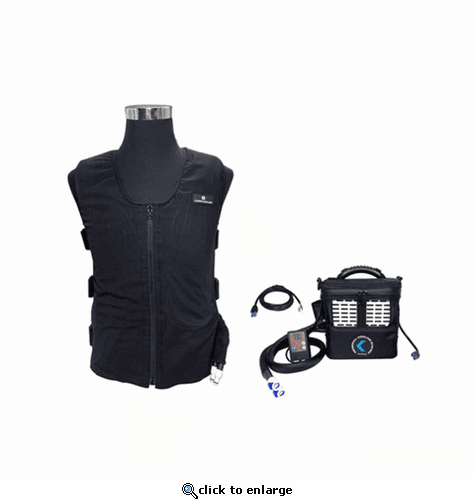

• Handcarry Liquid Chiller Cooling Unit (1)
• DC Connection Power Cord EC5 (1)
• Extension Tubing 1 meters (1)
• Mesh liquid cooling vest black (1)
• 12V 10A rechargeable battery with vehicle power charging and AC charging (Optional)
• 12V 20A rechargeable battery with AC charging only (Optional)
• Operation Manual (1)

Compcooler specializes in working for Personal body cooling & heating systems and Micro refrigeration Cooling system for harsh conditions. Compcooler has established its resume as a manufacturer of Military for use by the Army, Navy, Airforce as well as foreign militaries. The employees at Compcooler's state of the art manufacturing facility have been producing cooling systems over 15 years. Compcooler realized there was an opportunity to bring the same cooling benefits to civilians who working and living at hot ambient or outdoor activities. So Compcooler set up to create more cooling systems that were convenient, comfortable and affordable, major applications Outdoor workers, Motorcycle Riders, Racing Car Drivers, Patients, Police and soldier etc. Compcooler has established a well-managed supply chain and ISO9001 registered facility to support OEM or ODM cooling projects.
