CompCooler Dual Backpack ICE Water Cooling System with 5.0L Bladder Flow Control Mode

CompCooler Dual Backpack ICE Water Cooling System Flow Control Mode

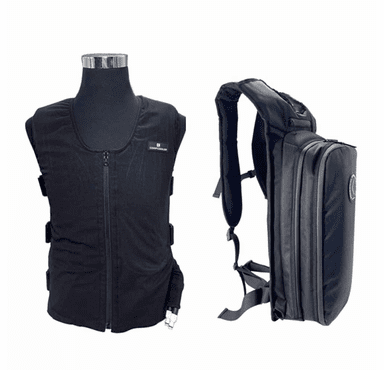

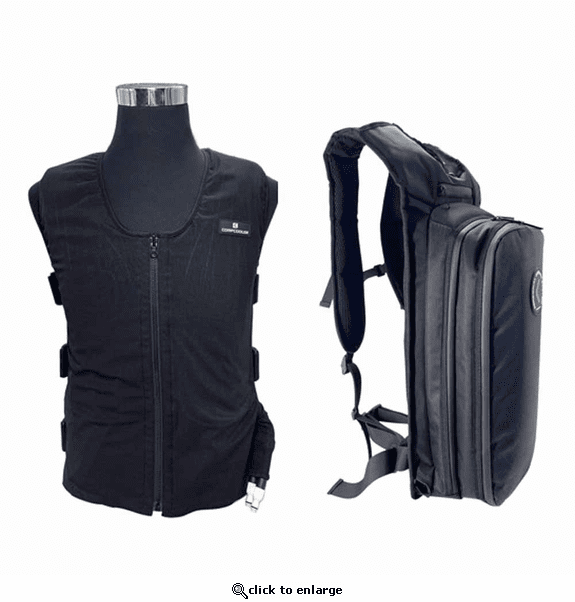

Smart, safety-conscious motorcyclist's wear protective clothing, like leather, and during the warmer months of the year that can get uncomfortably hot. That's where CompCooler can help with its cooling system specifically designed for motorcyclists. The system combines a tubing-lined vest with a liquid cooling system housed in a dual backpack to form a self-contained and convenient thermal regulation device. Available in sizes XS/S, M/L, L/2XL, 3XL/4XL, the vest is a highly engineered breathable mesh garment that weighs a mere 0.5KG / 1.1 lbs, dry weight. It consists of a soft mesh outer fabric and inner liner which is easy to don and comfortable to wear against the body. The liquid cooling system is contained in a backpack that weighs 1.8KG / 4.0 lbs, dry weight. It includes a 5.0-liter removable water/ice bladder, miniature circulation pump, 7.4V 2200mAh rechargeable battery, and On/Off switch. When operating, it's audible output is 45dBA. Cooling energy is provided by removing the bladder from the system, filling it with water and placing it in a freezer. Once frozen, the bladder is easily re-attached to the system, and with a charged battery pack, Users turn the switch 'On' and the pump circulates cold water in a continuous loop between the bladder and vest. Depending on ambient temperatures and workload, Users can expect a cooling duration anywhere from 4 to 6 hours with a fully frozen bladder or 2 to 4 hours using ice cubes in the bladder. The battery can last up to 10 hours. Additional bladders and battery packs can be purchased for prolonged cooling. Ice cubes can also be used for prolonged cooling, although the cooling time will be lessened.

Features:

• Stay cool, comfortable, and focused when riding on those hot summer days. Cooling energy comes from freezing the removable 5.0-liter ice bladder or ice cubes. Expect 4 to 6 hours of cooling performance depending on ambient conditions and user workload.

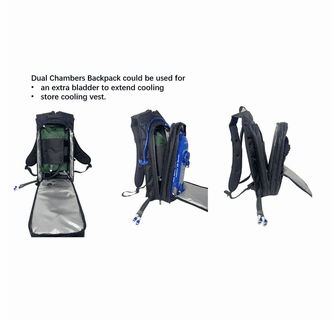

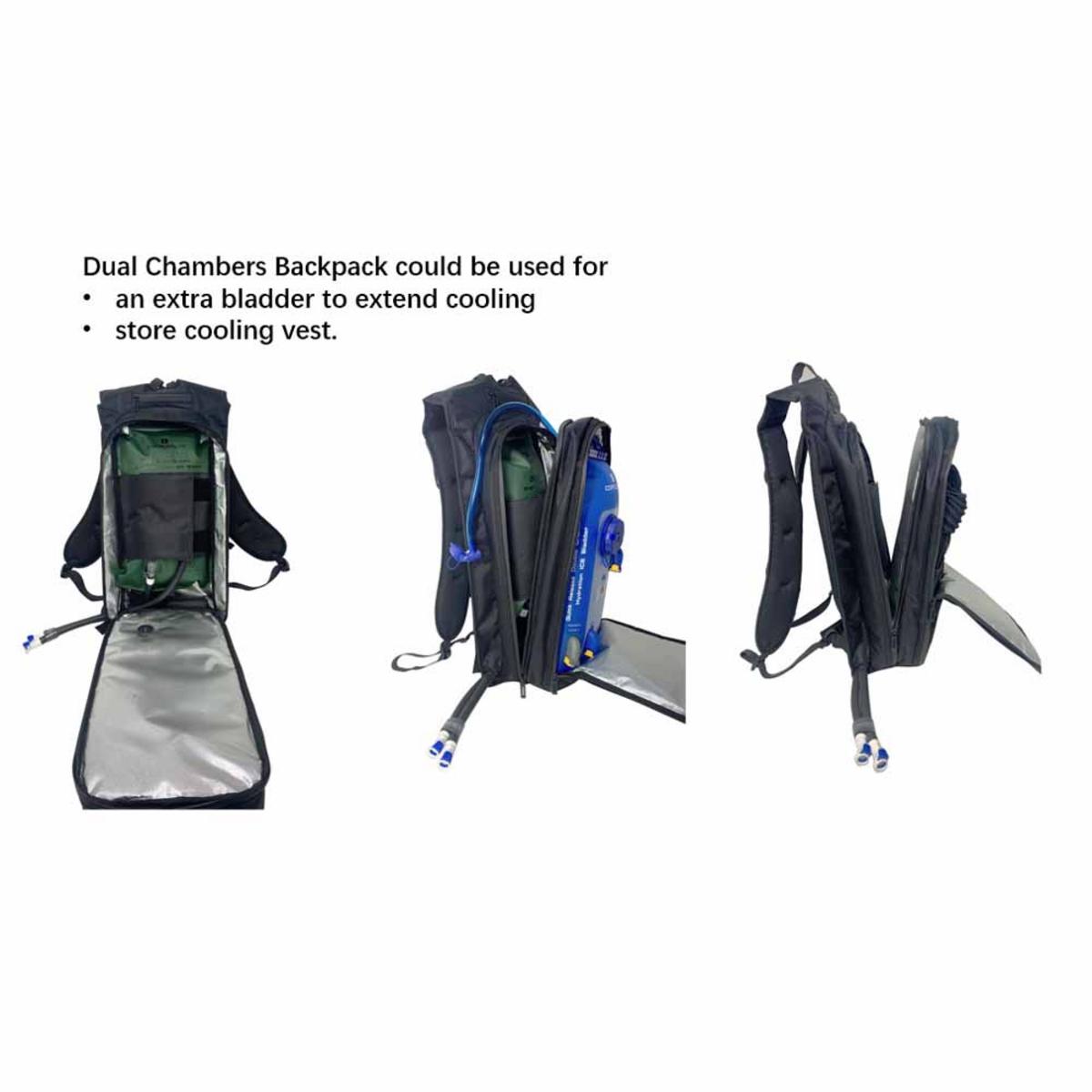

• The 5.0-liter water/ice bladder, rechargeable battery and miniature pump within the dual chambers backpack make this a self-contained and portable cooling system. Perfect for those hot jobs where freedom of movement is necessary and long cooling time is need.
• Dual backpack circulation cooling unit connects the liquid cooling vest with tubing, turn switch "on" and pump circulates 36F-68F (2C - 20C) cooled water in a continuous loop between the bladder and vest. The 5.0-liter water/ice bladder is easily detached with quick-connect fittings, filled with water and frozen.
• Breathable, zippered, tubing-lined Mesh liquid cooling vest is comfortable to wear against the skin. Velcro adjustment tabs provide a snug fit, ensuring maximum thermal transfer. Reduce core body temperature and the incidence of thermal stress while increasing comfort, safety, focus and endurance.
• Additional bladders and batteries can be purchased and used for prolonged cooling periods. This water-based cooling system is both safe to use and environmentally friendly.

Specifications:

• Backpack: Black Oxford with reflective insulation material
• Bladder: 5.0L Quick release bladder
• Pump: 7.4V diaphragm pump
• Connector: CPC female Quick fitting
• Pump: Flow control mode
• Water flow: 500ml/min
• Battery: 7.4V 2200mAh rechargeable Li-Ion battery
• Noise: 45dBA
• Dry weight: 1KG

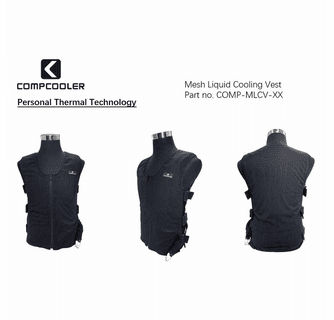

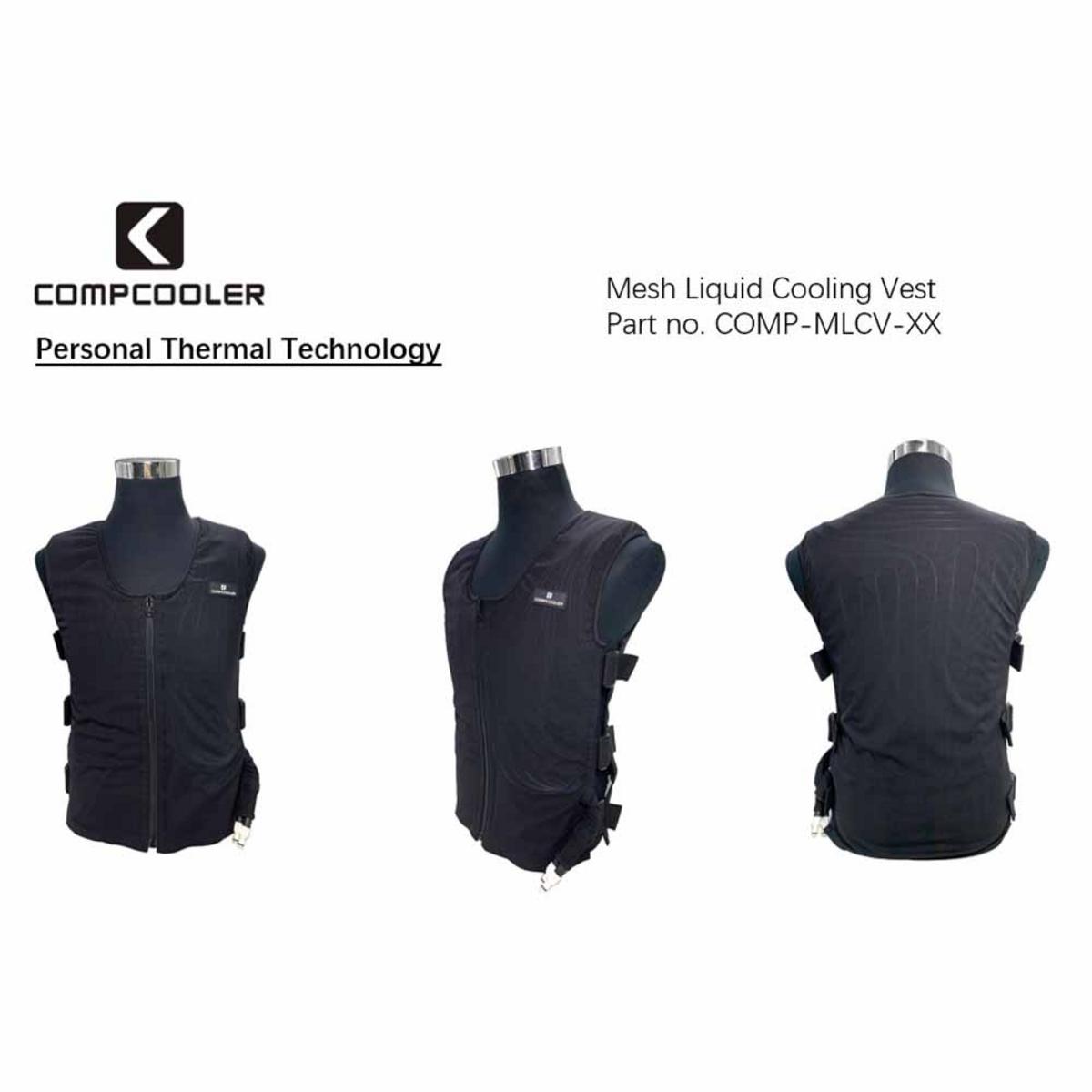

• Liquid Cooling Vest

• Material: Soft Stretch Mesh
• Color: Black Outer and black liner
• Cooling Channel: Silicon micro tubing
• Zipper: YKK reversible zipper
• Adjustable device: stretch body fit strap
• Fitting: CPC male quick fitting
• Dry weight: 0.5kg
• Size: XS/S, M/L, XL/2XL, 3XL/4XL

Cooling performance:

• Cooling time: 4-6 hours by 5.0L frozen bladder, 2-4 hours by ICE Cubes
• Temperature Range: 36F-68F (2C-20C)
• Battery Operated: 8 hours
• Operation Ambient: 0C-60C (32F-140F)

Component List:

• Dual Backpack Circulation Unit (1)
• Pump On/Off (1)

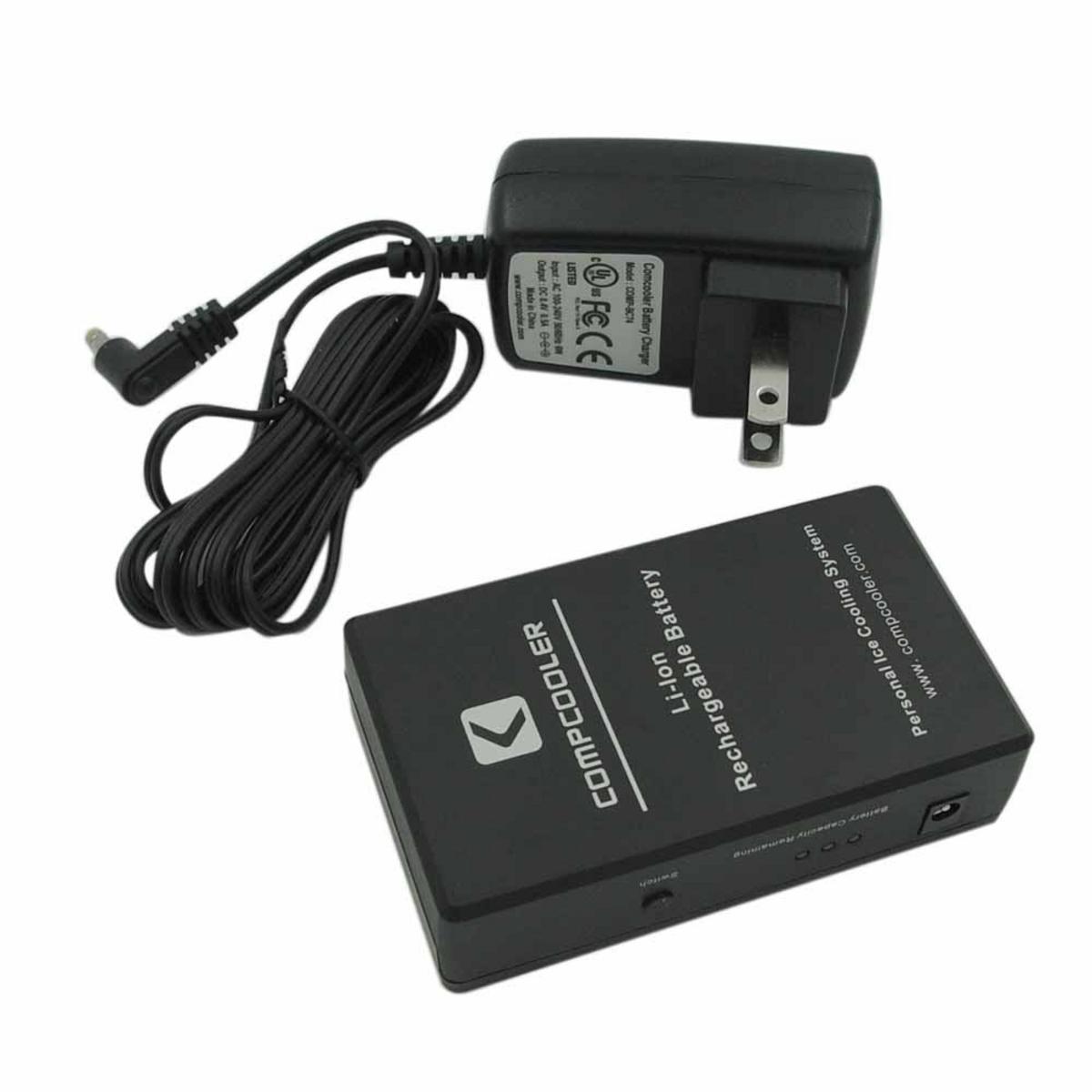

• Battery 7.4V 2200mAh (1)
• Battery Charger (1)
• 5.0L Detachable Bladder (1)
• Liquid Cooling Vest (1)

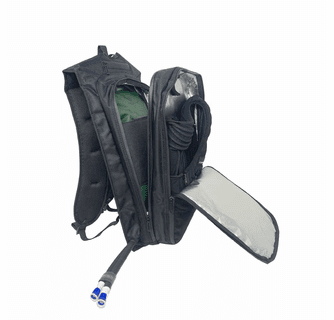

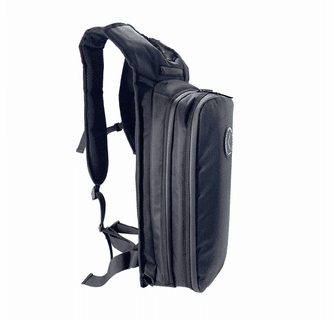

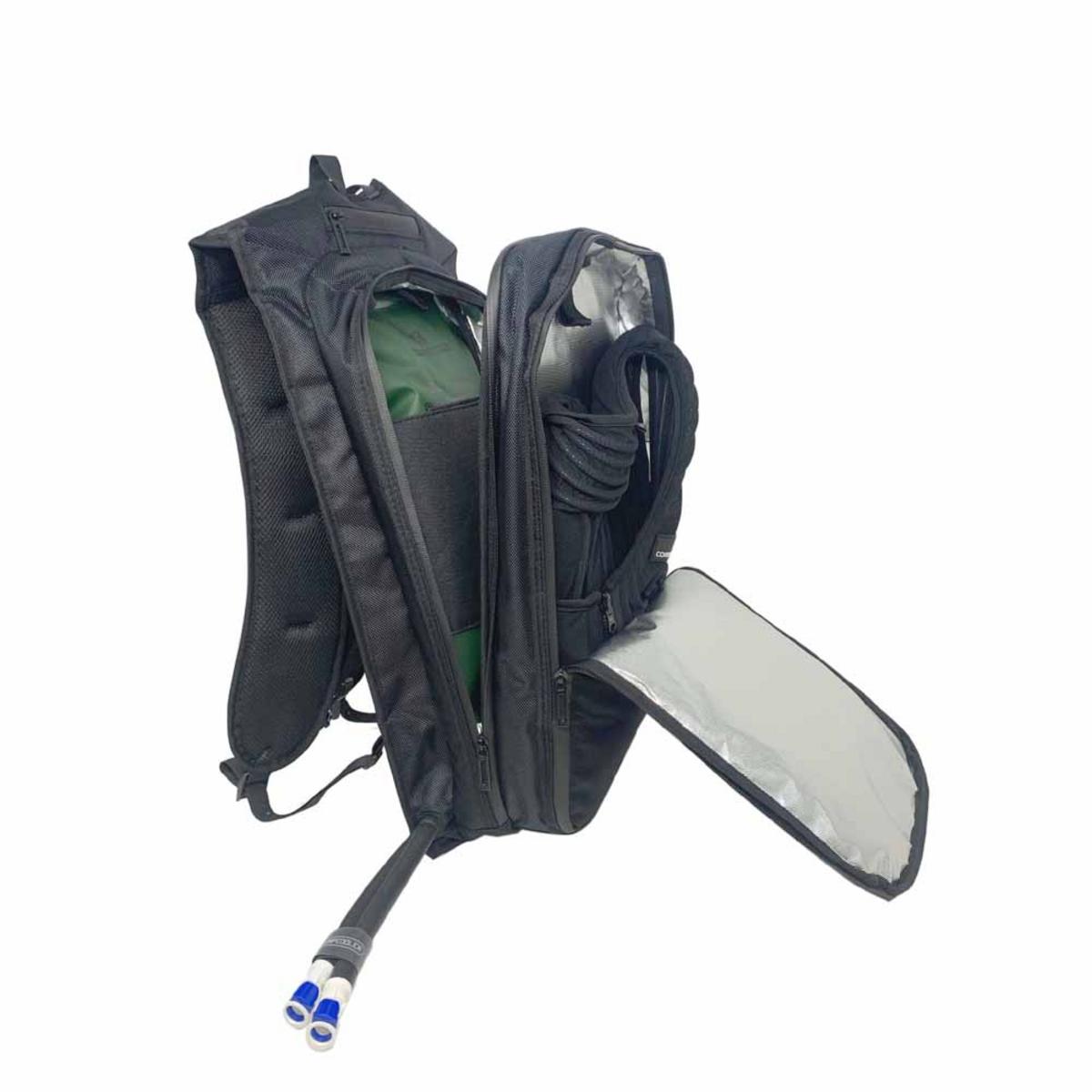

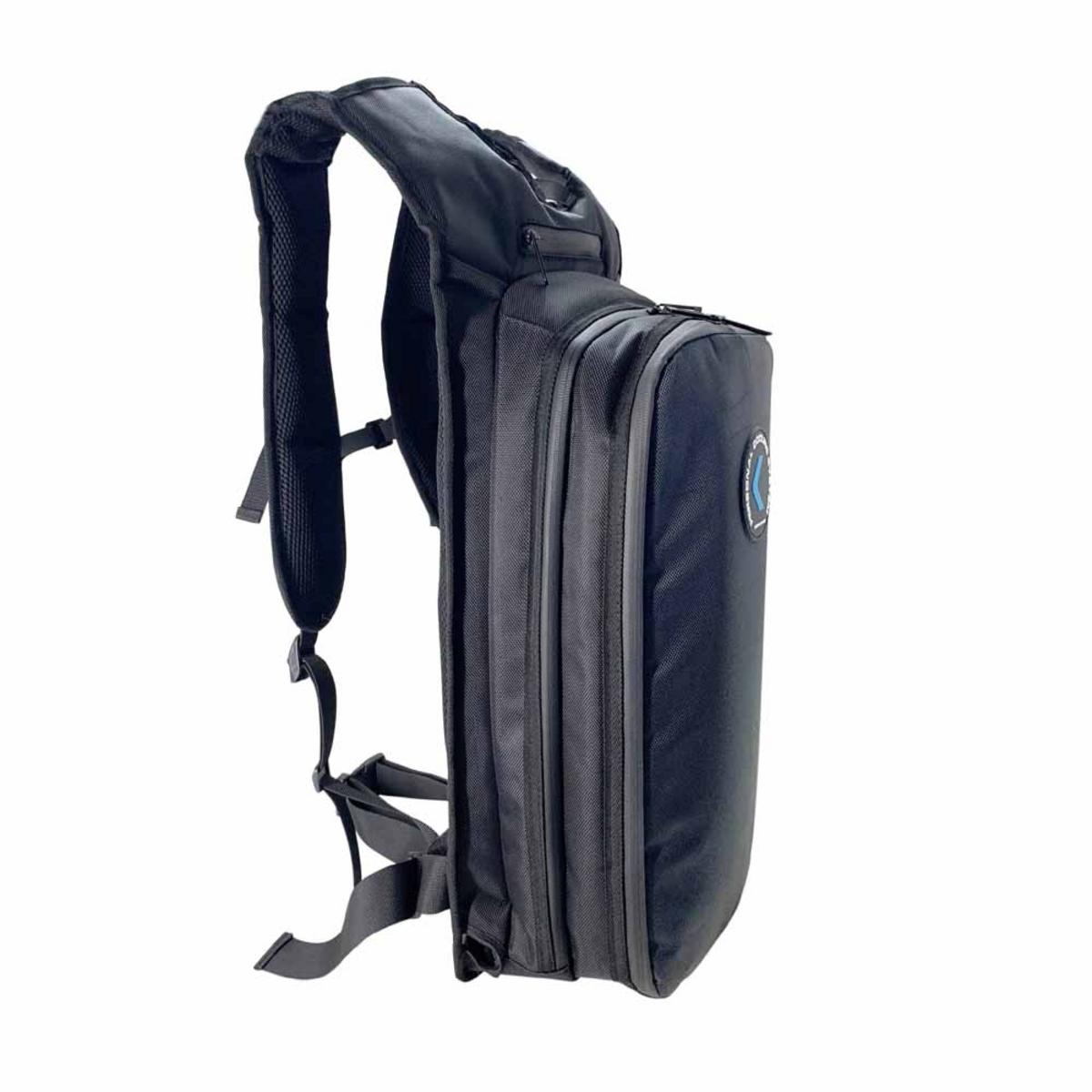

Backpack ICE Water Circulation Unit

Note: Garment size has 30% expansion by stretch fabric (10cm/4"Max) or velcro tab (15cm/6" Max), snug fit provides a maximum thermal transfer.

Compcooler specializes in working for Personal body cooling & heating systems and Micro refrigeration Cooling system for harsh conditions. Compcooler has established its resume as a manufacturer of Military for use by the Army, Navy, Airforce as well as foreign militaries. The employees at Compcooler's state of the art manufacturing facility have been producing cooling systems over 15 years. Compcooler realized there was an opportunity to bring the same cooling benefits to civilians who working and living at hot ambient or outdoor activities. So Compcooler set up to create more cooling systems that were convenient, comfortable and affordable, major applications Outdoor workers, Motorcycle Riders, Racing Car Drivers, Patients, Police and soldier etc. Compcooler has established a well-managed supply chain and ISO9001 registered facility to support OEM or ODM cooling projects.
