CompCooler Dual Backpack Full Body Cooling System with 5.0L Bladder Flow Control Mode

CompCooler Dual Chambers Backpack Full Body ICE Water Cooling System Includes Full Body Tubing-Lined Garment and Self-Contained Backpack Circulation Unit with 5.0L Detachable Bladder, Flow Control Water Pump and 7.4V Battery

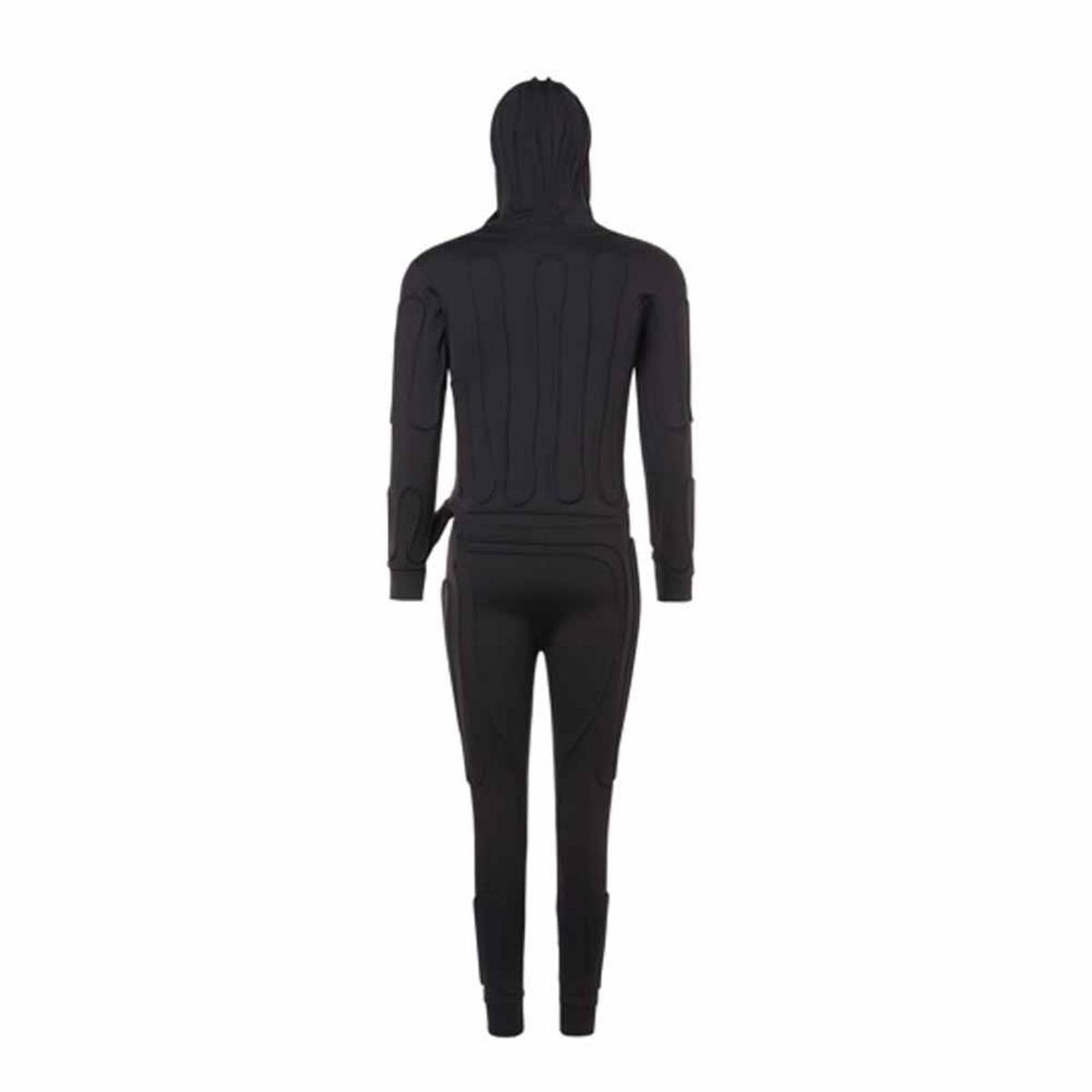

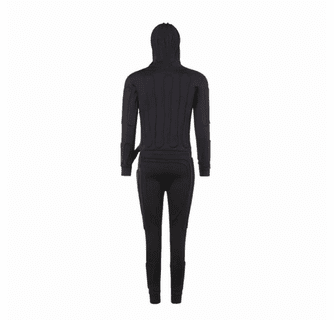

The CompCooler Dual Chambers Backpack Full Body ICE Water Cooling System combines a tubing-lined full body garment with a liquid cooling system housed in a backpack to form a self-contained and convenient thermal regulation device. The garment is made with a breathable and stretchable material that weighs a mere 1.0KG / 2.2 lbs, dry weight. Available in sizes XS/S, M/L, L/2XL, 3XL/4XL, the garment cools four zones including the torso, arms, legs and head. It's easy to don and comfortable to wear against the body. The liquid cooling system is contained in a backpack that weighs 1.5KG / 3.3 lbs, dry weight. It includes a 5.0-liter removable water bladder, miniature circulation pump, 7.4V 2200mAh rechargeable battery, and On/Off switch. When operating, it's audible output is 48dBA. Cooling energy is provided by removing the bladder from the system, filling it with water and placing it in a freezer. Once frozen, the bladder is easily re-attached to the system, and with a charged battery pack, Users turn the switch 'On' and the pump circulates cold water in a continuous loop between the bladder and garment. Depending on ambient temperatures and workload, Users can expect a cooling duration anywhere from 4 to 6 hours with a fully frozen bladder or 1 to 3 hours using ice cubes in the bladder. The battery can last up to 10 hours.

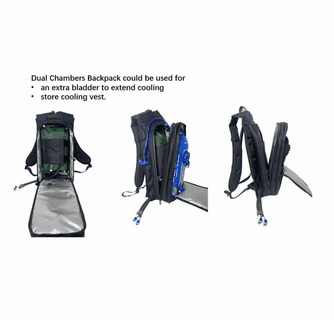

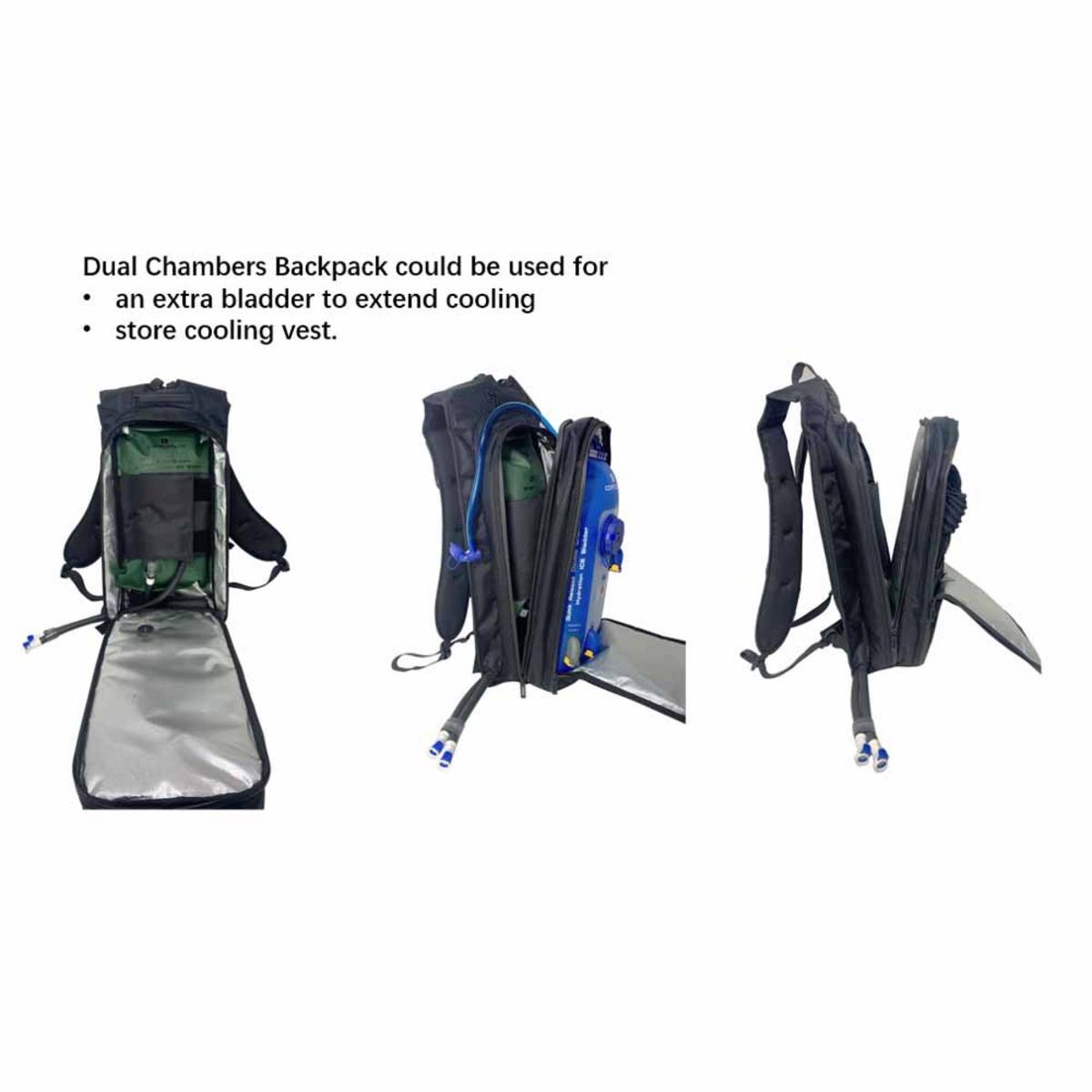

Additional bladders and battery packs can be purchased for prolonged cooling. 3.0 L Badder, 4.0L Hydration Bladder and 5.0L Bladder compatible with Dual Backpack Cooling System. The second chamber could be used for storage of cooling garment or an extra bladder.

Features:

• The 5.0-liter water/ice bladder, rechargeable battery and miniature pump within the backpack make this a self-contained and portable cooling system. Perfect for those hot jobs where freedom of movement is necessary.
• Circulates 36F-68F (2C- 20C) cooled water to four zones on a tubing-lined full body garment and detachable hoodie. Reduce core body temperature and the incidence of thermal stress while increasing comfort, safety, focus and endurance.

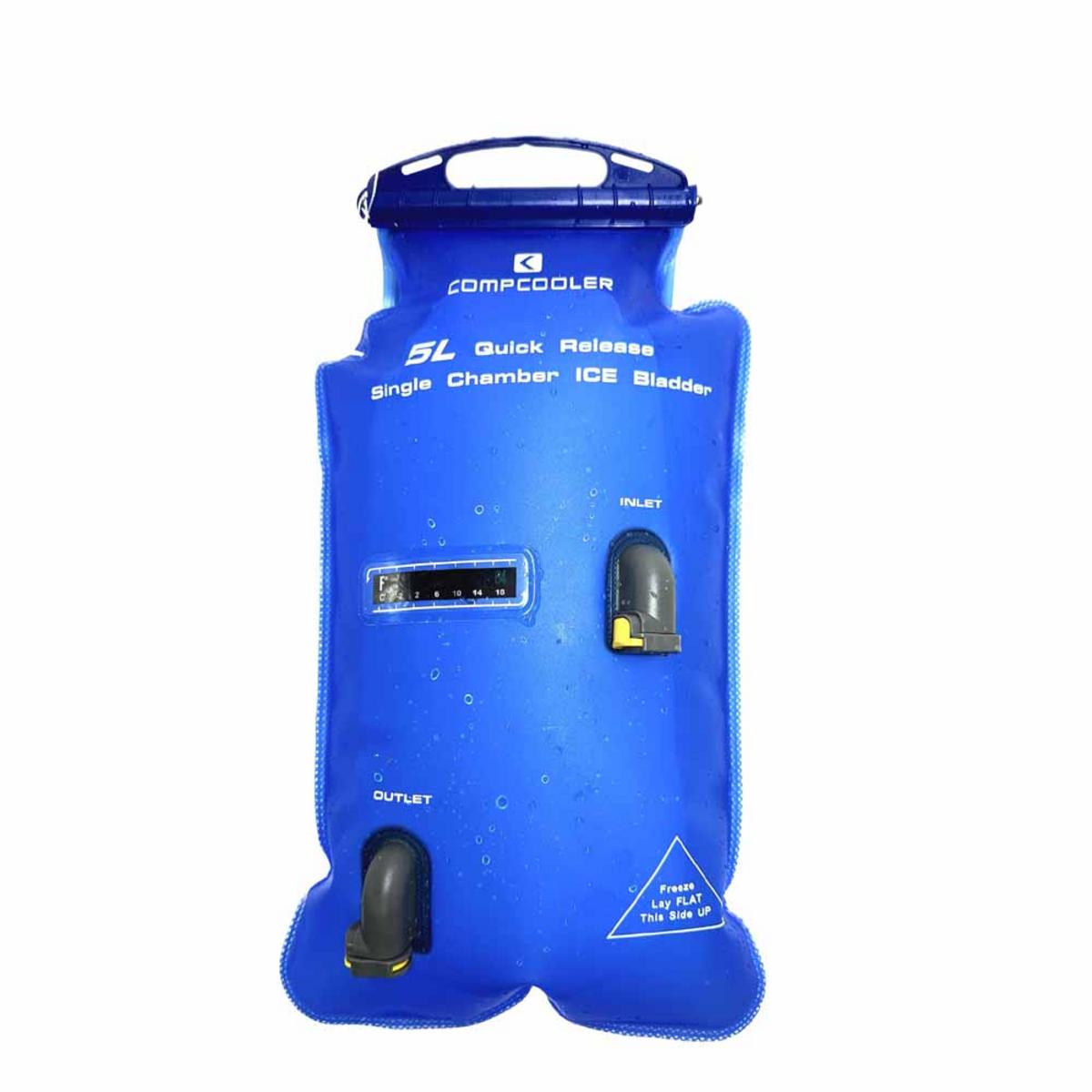

• The 5.0-liter bladder is easily detached with quick-connect fittings, filled with water and frozen. This serves as the cold energy source, providing 4-6 hours of cooling performance.
• Breathable, zippered garment is lined with cool feeling fabric that is comfortable to wear against the skin. The garment is designed to stretch 5-10% for a snug fit, ensuring maximum thermal transfer.
• Additional bladders and batteries can be purchased and used for prolonged cooling periods. This water-based cooling system is both safe to use and environmentally friendly.

Specifications:

• Backpack: Black Oxford with reflective insulation material
• Bladder: 5.0L Quick release bladder
• Pump: 7.4V diaphragm pump
• Connector: CPC female Quick fitting
• Pump: On/Off
• Water flow: 500ml/min

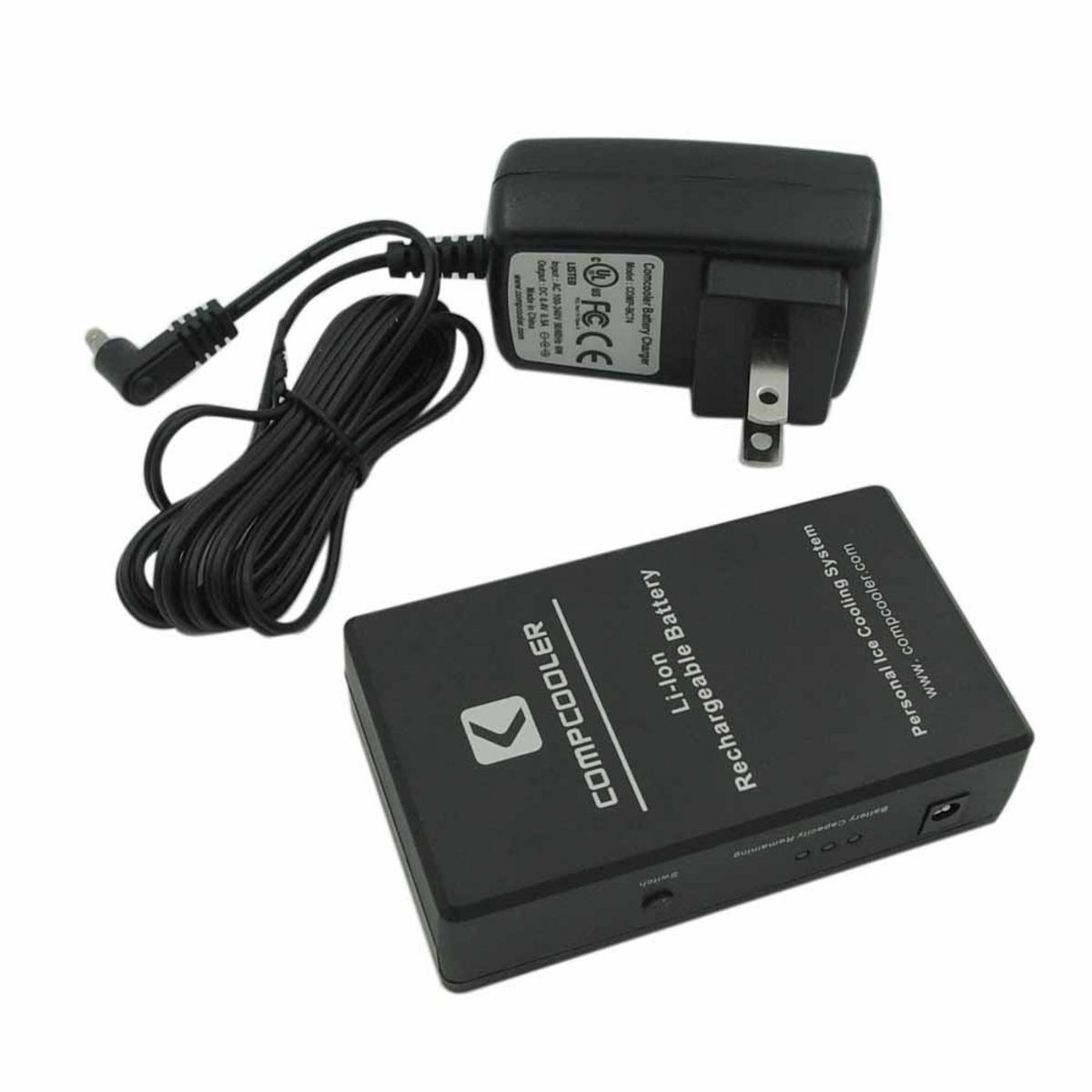

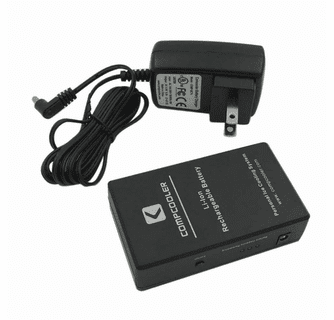

• Battery: 7.4V 2200mAh rechargeable Li-Ion battery
• Noise: 45dBA
• Dry weight: 1KG

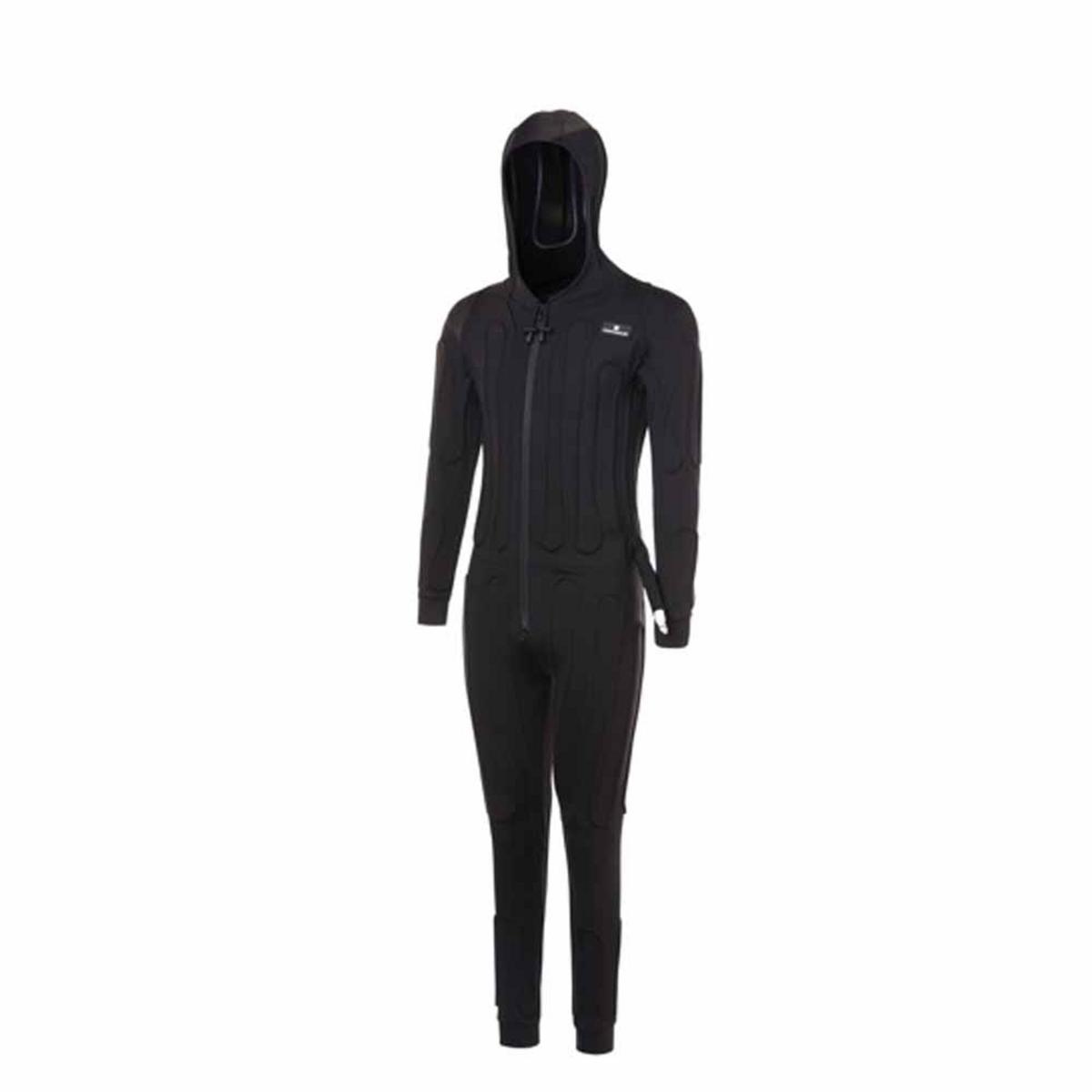

• Full Body Liquid Cooling Garment

• Material: 85% cotton with 15% Lycra
• Color: Dark Blue
• Cooling Channel: Silicon tubing
• Hoodie: detachable
• Zipper: YKK zipper
• Fitting: CPC male fitting
• Manifold fitting: Aluminum machining
• Dry weight: 1kg
• Size: XS/S, M/L, XL/2XL, 3XL/4XL

Cooling performance:

• Cooling time: 4-6 hours by 5.0L frozen bladder
• Temperature Range: 36F-68F (2C-20C)
• Battery Operated: 8 hours
• Operation Ambient: 0C-60C (32F-140F)

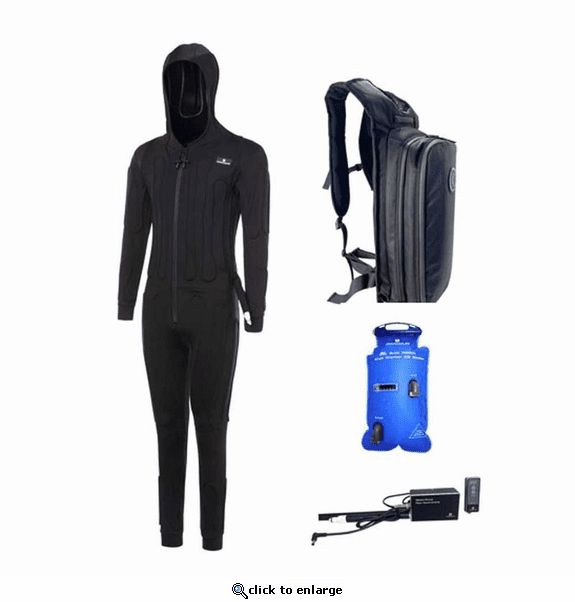

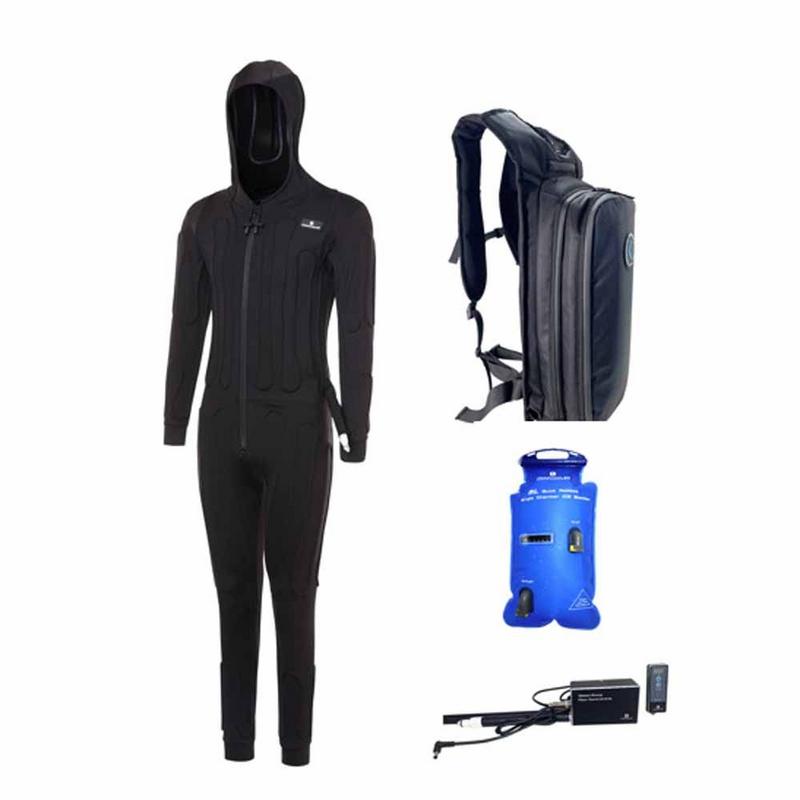

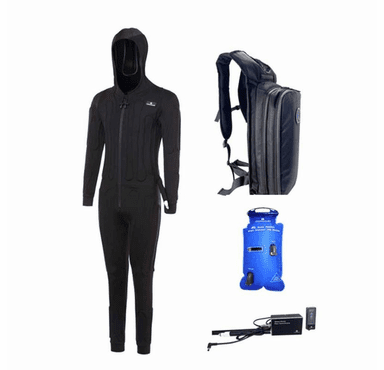

Component List:

• Full Body Cooling Garment (1)

Dual Backpack Circulation System:

• Water pump, Flow Control (1)
• Battery 7.4V 2200mAh (1)
• 5.0L Bladder (1)
• Battery charger 110-220V (1)
• Manual (1)

Backpack ICE Water Circulation Unit

Compcooler specializes in working for Personal body cooling & heating systems and Micro refrigeration Cooling system for harsh conditions. Compcooler has established its resume as a manufacturer of Military for use by the Army, Navy, Airforce as well as foreign militaries. The employees at Compcooler's state of the art manufacturing facility have been producing cooling systems over 15 years. Compcooler realized there was an opportunity to bring the same cooling benefits to civilians who working and living at hot ambient or outdoor activities. So Compcooler set up to create more cooling systems that were convenient, comfortable and affordable, major applications Outdoor workers, Motorcycle Riders, Racing Car Drivers, Patients, Police and soldier etc. Compcooler has established a well-managed supply chain and ISO9001 registered facility to support OEM or ODM cooling projects.
